Grounding and Bonding System:


Earth Rod & Couplers:


Starting from the base this is the Grounding and Bonding Section of the entire Earthing and Protection Project.

This Quality Earth Rods are basically made from either solid copper, stainless steel or copper bonded steel. Divine Impex is the manufacturer and supplier of solid copper and stainless steel Earth Rods.

This Copper Rods again can be unthreaded, single side threaded or both side threaded as per the requirement and client can get this all Divine Impex at best deal rates.

Highslide JS

  click to enlarge

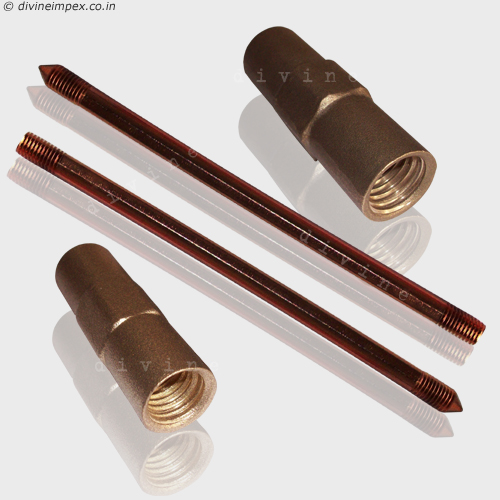

Earth Rods [Solid Copper Threaded / Unthreaded]

Product Code Rod Diameter Length Thread Diameter

111212 12.7 mm 1200 mm 9/16 "
111215 12.7 mm 1500 mm 9/16 "
111218 12.7 mm 1800 mm 9/16 "
111224 12.7 mm 2400 mm 9/16 "
111230 12.7 mm 3000 mm 9/16 "

111412 14.2 mm 1200 mm 5/8 "
111415 14.2 mm 1500 mm 5/8 "
111418 14.2 mm 1800 mm 5/8 "
111424 14.2 mm 2400 mm 5/8 "
111430 14.2 mm 3000 mm 5/8 "

111712 17.2 mm 1200 mm 3/4 "
111715 17.2 mm 1500 mm 3/4 "
111718 17.2 mm 1800 mm 3/4 "
111724 17.2 mm 2400 mm 3/4 "
111730 17.2 mm 3000 mm 3/4 "


As shown in the table this earth rods comes in various size and to connect 2 rods with each other this Brass Couplers are used. They have to be resistant to very high voltages and thus a good quality material is used in manufacturing Couplers.



Threaded Couplers

Highslide JS

click to enlarge


This Brass Couplers are made from material like: Brass CZ360, Bronze and Gun Metal (LG2)
The Couplers are readily available in sizes like: 1 / 2 ",  5 ⁄ 8 ",  3 / 4 ".
