Lightning Protection System:


Rod Brackets:

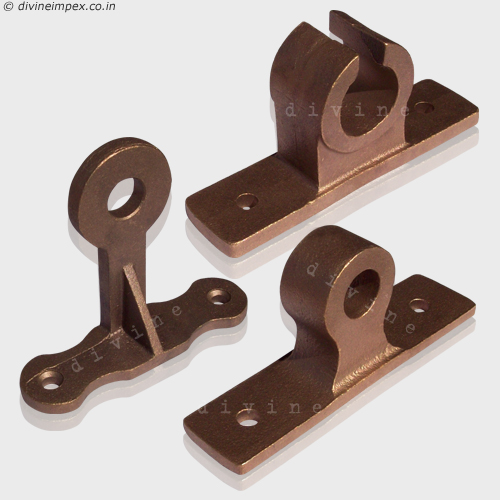

Rod Brackets provide a 75mm projection from the building face and are used where it is not possible to fit a saddle onto the building roof. The brackets are used in conjunction with the rod to tape coupling used to secure the flat tape to the air rod.



Highslide JS

click to enlarge


The various sizes available are:
Code Product Name Material Conductor Size Rod Diameter

2800116 Rod Brackets Copper Flat Type 16 mm
2800120 Rod Brackets Copper Flat Type 20 mm
2800216 Rod Brackets Copper Long Neck 16 mm
2800220 Rod Brackets Copper Long Neck 20 mm
2800316 Rod Brackets Aluminum Flat Type 16 mm
2800320 Rod Brackets Aluminum Flat Type 20 mm
2800416 Rod Brackets Aluminum Long Neck 16 mm
2800420 Rod Brackets Aluminum Long Neck 20 mm

Rod Brackets are manufactured in different materials like Brass CZ360, Bronze, Gun Metal (LG2) and Aluminum
