Grounding and Bonding System:

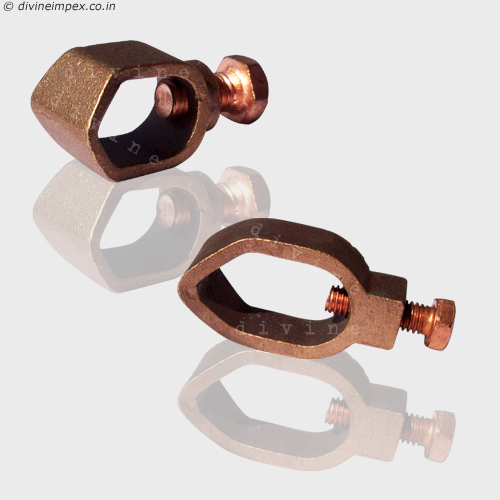

Rod to Cable Clamp


Rod to Cable Clamp are made from high copper content alloy for the connection of the earthing conductor to earth rod. Corrosion resistance, conductivity and mechanical strength in clamp design are used to ensure the earthing system remains operative for many years.

Highslide JS

click to enlarge


The various sizes available are:
Code Product Name Thread Size Conductor Size Rod Diameter

501635 Rod To Cable Clamp 9.5 mm 6 - 35 mm˛ 3/8 "
501650 Rod To Cable Clamp 12.5 mm 16 - 50 mm˛ 1/2 "
501670 Rod To Cable Clamp 16 mm 16 - 70 mm˛ 5/8"
502095 Rod To Cable Clamp 20 mm 35 -95 mm˛ 3/4 "
502570 Rod To Cable Clamp 25 mm 70 - 120  mm˛ 1 "

Rod to Cable Clamp are manufactured in different materials like Brass CZ360, Bronze and Gun Metal (LG2).
