Lightning Protection System:


Test Clamp:



Test Clamp is used for connecting flat tape to solid circular conductor, for example where the lightning protection system has been designed in 8mm copper conductor but the connection to the earth rod is made using 25 x 3mm copper tape.
It will also serve for making through joints and tee connections in 8mm solid circular conductor.

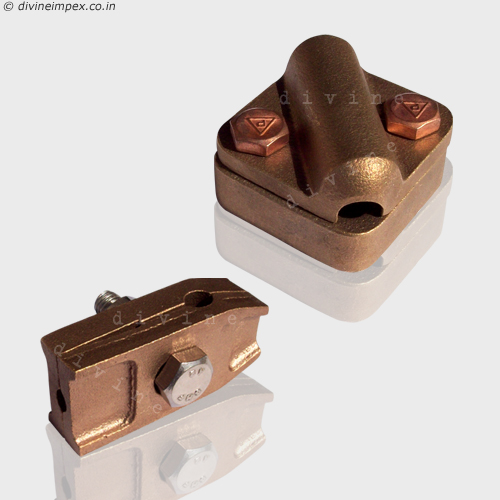

Flat Test Clamp is used to connect 8 mm diameter conductor to 25x3 mm conductor.

Square Test Clamp is used for forming end to end joints.


Highslide JS

click to enlarge


The various sizes available are:
Code Product Name  Material Conductor Size Rod Diameter

3500008 Flat Test Clamp Copper 25 x 3 mm 8 mm
3500018 Flat Test Clamp Aluminum 25 x 3 mm 8 mm

3500050 Square Test Clamp Copper 50 mm˛
3500070 Square Test Clamp Copper 70 mm˛
3500095 Square Test Clamp Copper 95 mm˛


Test Clamp are manufactured in different materials like Brass CZ360, Bronze and Gun Metal (LG2)
