Grounding and Bonding System:

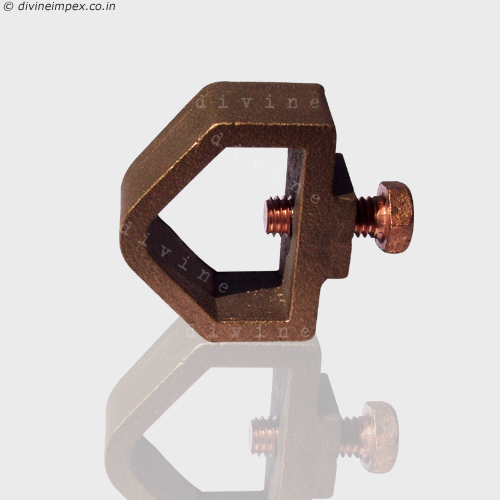

Rod to Tape Clamp



Rod to Tape Clamp are made from high copper content alloy for the connection of the earthing conductor to earth rod. Corrosion resistance, conductivity and mechanical strength in clamp design is used to ensure the earthing system remains operative for many years.
  Highslide JS

click to enlarge


The various sizes available are:
Code Product Name Trade Size  Conductor Size Rod Diameter

601225 Rod To Tape Clamp 12.7 mm 26 X 12 mm 1/2 "
601625 Rod To Tape Clamp 16 mm 26 X 12 mm 5/8 "
601631 Rod To Tape Clamp 16 mm 31 X 2 mm 5/8 "
601650 Rod To Tape Clamp 16 mm 51 X 8 mm 5/8 "
600020 Rod To Tape Clamp 20 mm 26 X 10 mm 3/4 "
600025 Rod To Tape Clamp 25 mm 26 X 12 mm 1 "

Rod to Cable Clamp are manufactured in different materials like Brass CZ360, Bronze and Gun Metal (LG2).
