Lightning Protection System:

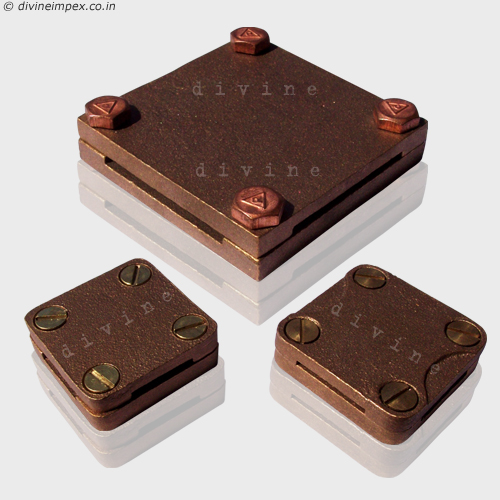

Square Tape Clamp:


Square Tape Clamp is used for the inter connection of multiple conductors or for changes of direction which insure a low resistance, corrosion resistant connection. Square Tape Clamps are used for forming straight through, cross or tee joints in tape.

Fix Using Counter Sunk Wood Screw 1.5" X No. 10.


Highslide JS

click to enlarge


 The various sizes available are:
Code Product Name   Conductor Size

300253 Square Tape Clamp   25 X 3 mm
300256 Square Tape Clamp   25 X 6 mm
300313 Square Tape Clamp   31 X 3 mm
300316 Square Tape Clamp   31 X 6 mm
300386 Square Tape Clamp   38 X 6 mm


300503 Square Tape Clamp   50 X 3 mm
300506 Square Tape Clamp   50 X 6 mm


Square Tape Clamp are manufactured in different materials like Brass CZ360, Bronze, Gun Metal (LG2) and Aluminum.
